1.描述Description：
這種起重機特別適用于普通貨物、集裝箱船上的快速處理型類。它的低重量意味著它可用于承載能力低的地區。

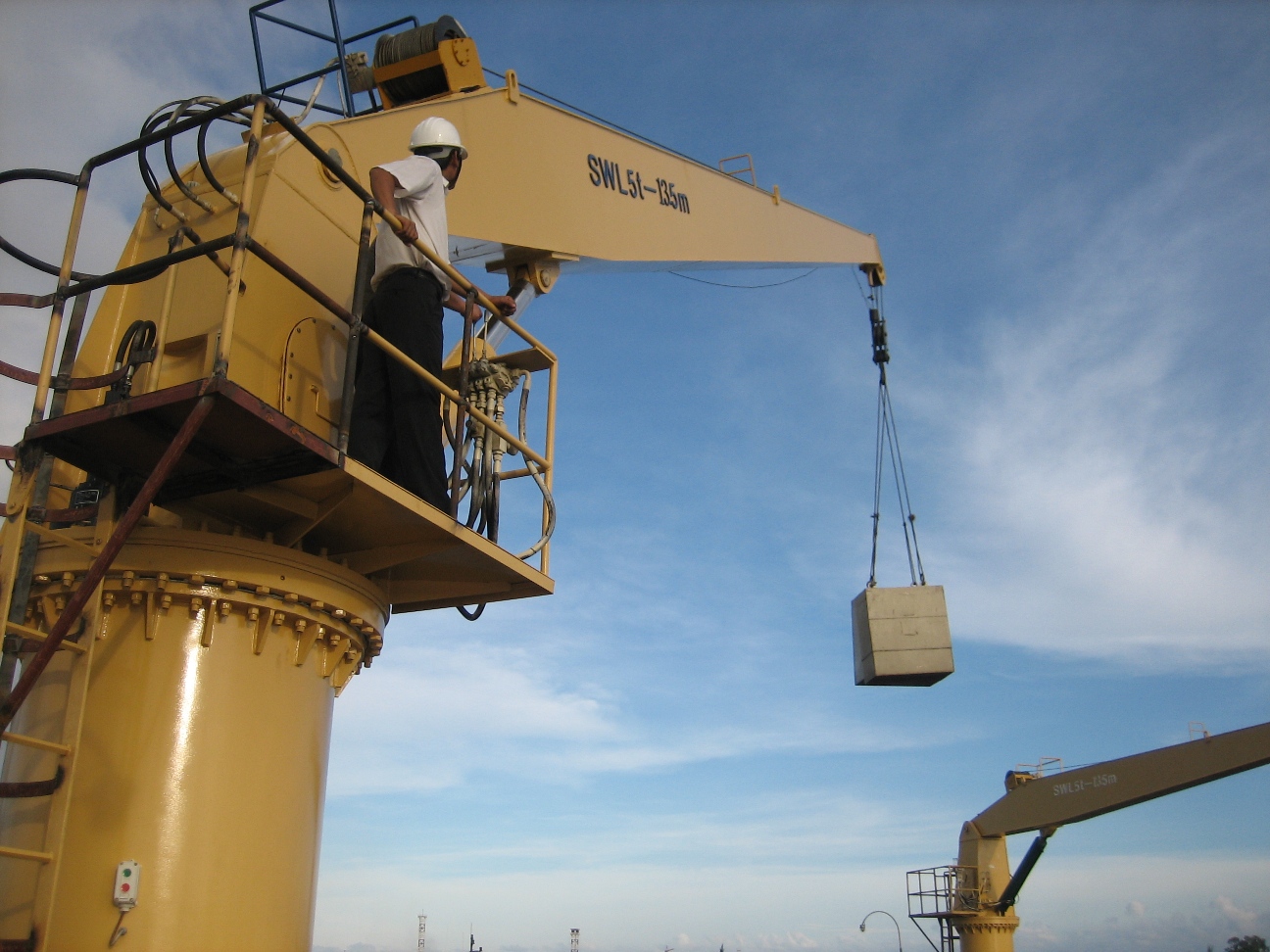

This kind of crane is especially suitable for the rapid processing type of ordinary cargo and container ships. Its low weight means that it can be used in areas with low carrying capacity.
產品系列Product Range
|
起重機類型 Crane Type |
工作半徑Working Radius(m) |
SWL(ton) |
起重力矩 Lifting Moment(kNm) |
總力矩 Total Moment(kNm) |
底座直徑 Pedestal Diamete(mm) |
凈重 Dead Weight(ton) |
|
DK220 |
27.5 |
20 |
2200 |
4000 |
1800 |
15 |
|
DK300 |
30 |
25 |
3000 |
5000 |
2065 |
17.5 |
|
DK400 |
32 |
30 |
4000 |
6300 |
2050 |
20 |
|
DK500 |
35 |
35 |
5000 |
8000 |
2240 |
25 |
|
DK800 |
40 |
50 |
8000 |
11500 |
2271 |
45 |
|
DK1000 |
43 |
60 |
10000 |
14400 |
2536 |
60 |
|
DK1200 |
45 |
80 |
12000 |
18000 |
2550 |
85 |
|
DK1600 |
50 |
100 |
16000 |
34000 |
3166 |
120 |
|
DK2000 |
50 |
125 |
20000 |
44000 |
3987 |
160 |
|
DK2500 |
50 |
150 |
25000 |
50000 |
4000 |
180 |
|
DK3000 |
55 |
200 |
30000 |
60000 |
4500 |
220 |
說明：以上參數為已有業績案例中的成熟技術參數僅作參考，可根據用戶需要進行非標設計、制造。該機有各種派生型號供用戶選用。
Note: The above parameters for the performance of the existing cases of mature technical parameters are for reference only. We can design and manufacture products according to user’s requirements. There are various derivative models of said crane available for customers to choose.
